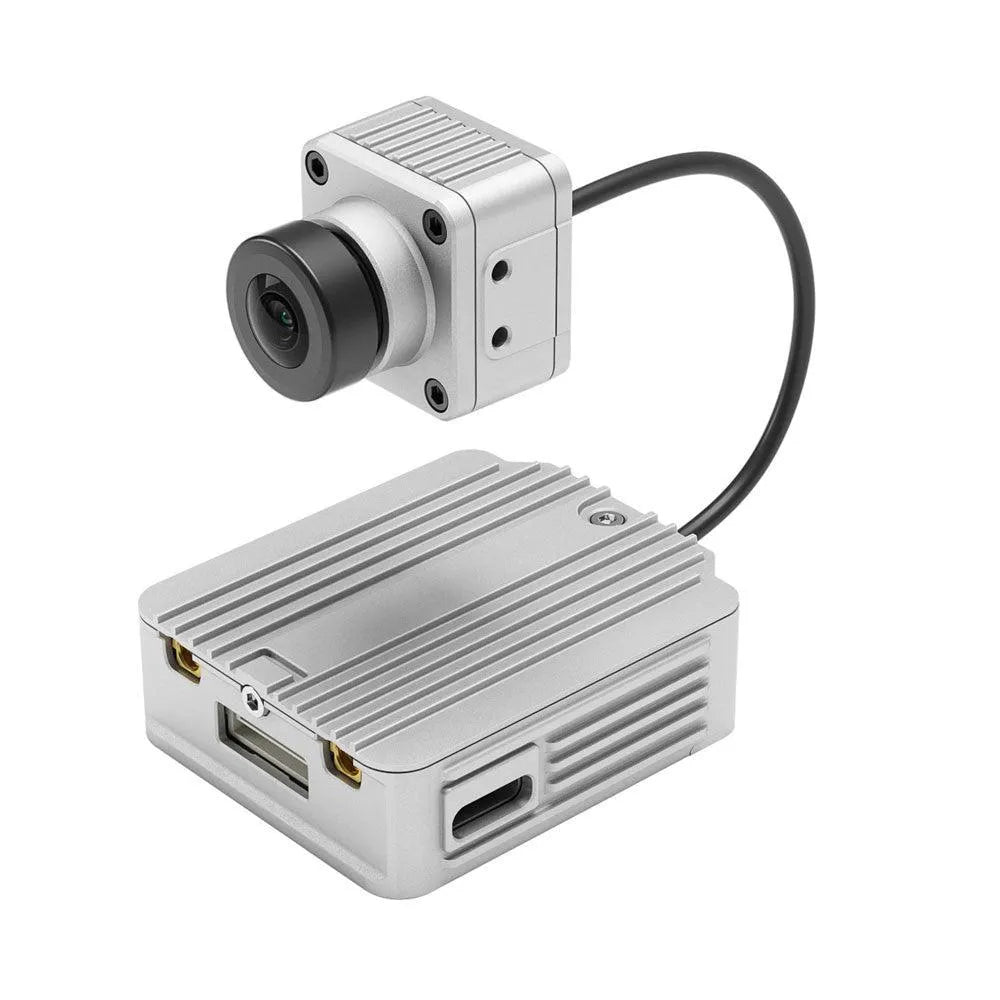

DJI FPV Air Unit with Camera
€249,99
Passa alle informazioni sul prodotto
DJI FPV Air Unit with Camera The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously. Digital HD systems have traditionally been rather bulky and unwieldy to mount on a mini quad. Not anymore. With this air unit, you can comfortably fit the module in your mini quad stack (probably not slammed frames). The 'mini' camera fits easily into your existing builds, no weird mounting adapters. Note: The air unit module does get very hot in use. Do not power on for an extended period of time without proper cooling (AKA flying). SpecificationsWeightAir Unit (Camera included): 45.8 g3.9 g (MMCX elbow each)DimensionsAir Unit: 44 × 37.8 × 14.4 mmCamera: 27.4 × 21.1 × 20.1 mmCoaxial Cable: 100 mmOperating Frequency: 5.725-5.850 GHzTransmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBmMin. Latency (end-to-end)Low Latency Mode (720p/120fps): <28 msHigh-Quality Mode (720p/60fps): <40 msMax. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 kmVideo Format: MP4 (Video format: H.264; Audio format: ACC-LC)I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slotOperating Temperature Range: 32° to 104°F (0° to 40°C)Input Power: 7.4-17.6 V, about 4-9 WSensor: 1/3.2'' CMOS; Effective Pixels: 4 MLens: 2.1 mm, f/2.1Shutter: Rolling shutterISO: 100-25600FOV: 150°(D); 122°(H); 93°(V)Dimension: 22.1 × 21.1 × 20.1 mmWeight: 8.2 gChannels: 8Channels InfoFCCChannel 1: 5660Channel 2: 5695Channel 3: 5735Channel 4: 5770Channel 5: 5805Channel 6: 5878Channel 7: 5914Channel 8: 5839CompatibilityDJI FPV GogglesDJI FPV Remote ControllerTipsThe air unit may become hot during or after operation.DO NOT touch the air unit before it cools down.DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode. Keep the antennas of the air unit at least 40 mm apart.Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.Package included:DJI FPV Air Unit (with camera and four M2 screws) × 1Three-in-one cable × 1Antenna (MMCX elbow) × 2
